Seedling Heat Mat Wholesale for Commercial Greenhouses: Technical Specification Guide

For commercial propagation, a seedling heat mat should be treated as root-zone heating equipment, not simply as a warm surface beneath a tray. The objective is to maintain a suitable and repeatable substrate temperature during germination and early rooting—especially when greenhouse air temperature is lower than the crop requires.

At Scarecrow Garden Supplier, our approach to Seedling Heat Mat Wholesale projects starts with the growing system: crop temperature, tray footprint, bench conditions, voltage, thermostat strategy, moisture exposure, and destination-market requirements.

Why Root-Zone Heating Matters

Seed germination responds directly to temperature. Penn State notes that inadequate or uneven germination temperatures can slow emergence and create non-uniform transplant batches; its guidance also shows how strongly germination time can change with temperature.

Bottom heating transfers energy through a relatively simple thermal path:

Heating mat → Tray base → Growing medium → Root zone

Actual substrate temperature, however, depends on more than mat wattage. Commercial growers should consider:

•   Ambient greenhouse temperature;

•   Tray material and bottom contact area;

•   Depth and moisture content of growing media;

•   Insulation beneath the mat;

•   Airflow around propagation benches;

•   Irrigation frequency;

•   Thermostat sensor position.

This is why professional Seedling Heat Mat Wholesale selection should be based on the complete propagation system rather than wattage alone.

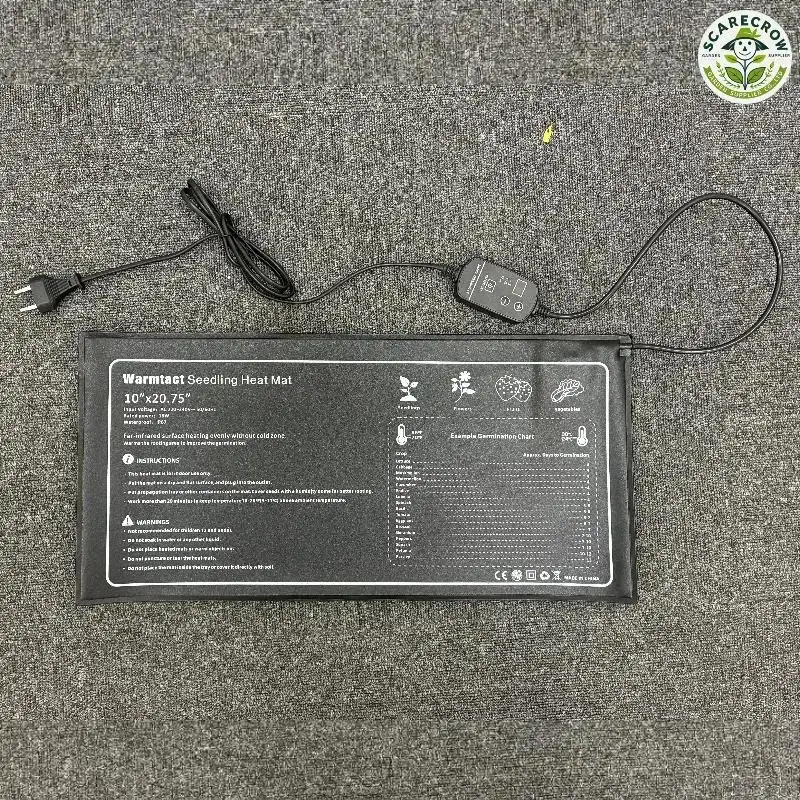

Scarecrow Seedling Heat Mat Specifications

Our current wholesale range is designed for seed starting, propagation benches, nursery production, hydroponic systems, and controlled growing environments.

Specification	Available Configuration	Procurement Consideration
Material	PVC	Flexible construction for tray and bench placement
Voltage	110–230V	Match destination electrical system
Rated Power	18W / 45W / 105W	Select according to mat size and operating environment
Sizes	254 × 527 mm; 508 × 527 mm; 1219 × 527 mm	Match tray footprint and bench layout
Waterproof Rating	IPX7	Important for humid propagation environments
Temperature Control	Standard non-thermostat version; adjustable thermostat optional	Choose according to crop-control requirements
Plug Options	China / US / EU; other types can be discussed	Confirm before sample approval

These specifications form the starting point for a Seedling Heat Mat Wholesale RFQ rather than a one-size-fits-all configuration.

1. Select Mat Size by Heated Footprint

Mat dimensions should follow the usable tray area.

For greenhouse benches, avoid selecting by nominal tray count alone. Compare the actual external tray dimensions with the heated surface so that cells near the perimeter are not consistently outside the effective heating area.

Typical applications include:

•   254 × 527 mm — compact propagation areas and smaller seed-starting systems;

•   508 × 527 mm — larger tray arrangements and indoor propagation shelves;

•   1219 × 527 mm — extended bench or multi-tray applications.

For large orders of Heat Mats, we suggest checking the mat against the buyer's trays to validate the mat design. Bulk production would happen after this step.

2. Do Not Specify Wattage Without Considering Heat Loss

Scarecrow heat mats are available in 18W, 45W, and 105W configurations.

Rated power tells you electrical input, but it does not directly specify final root-zone temperature. Heat is continuously lost through the tray, bench, air, watering, and surrounding structure.

In practice:

•   Colder greenhouses normally create greater heat loss;

•   Metal or uninsulated benches can conduct heat away from the propagation zone;

•   Wet growing media changes heat transfer behavior;

•   Frequent irrigation can temporarily reduce substrate temperature;

•   Excessive insulation can change the temperature response of the system.

For this reason, Seedling Heat Mat Wholesale buyers should confirm the size-to-wattage configuration and test samples under representative operating conditions rather than relying on wattage as a standalone performance indicator.

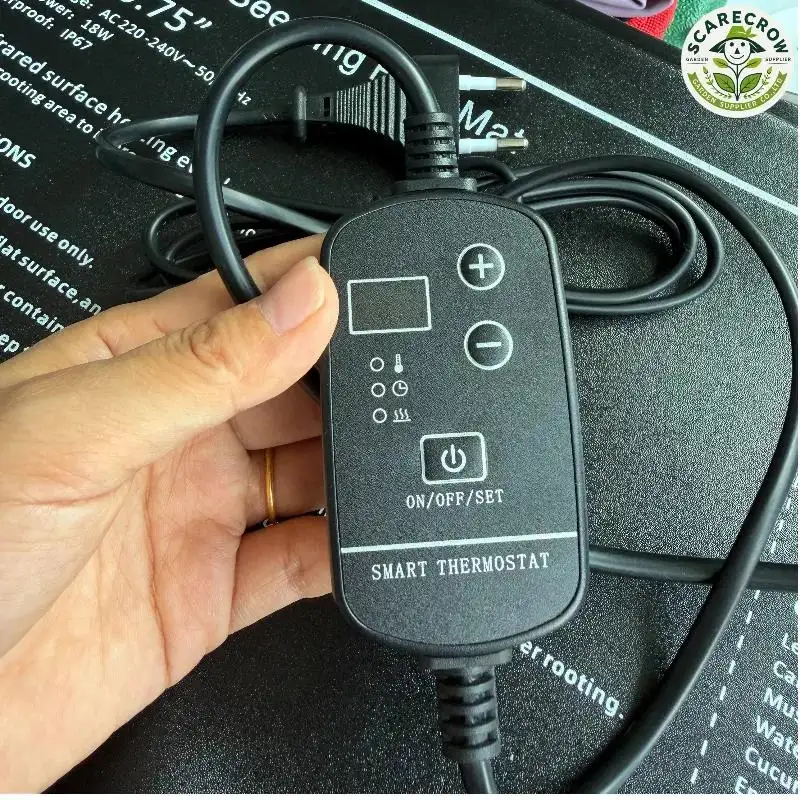

3. Use Thermostatic Control Where Temperature Consistency Matters

A thermostat becomes increasingly important when crop requirements are narrow or greenhouse conditions fluctuate.

Scarecrow offers both standard non-thermostat configurations and adjustable thermostat options.

For controlled propagation, the sensor should represent the root-zone condition, rather than simply measuring the mat surface. The control strategy should also account for daytime solar gain and nighttime heat loss.

Thermostatic control is particularly useful for:

•   Commercial germination rooms;

•   Winter greenhouse propagation;

•   Hydroponic starter systems;

•   Temperature-sensitive crops;

•   Multi-stage seedling production.

Alabama Extension also notes that bottom heating can accelerate drying of growing media, so heating and irrigation schedules should be managed together.

4. Design for Wet Greenhouse Environments

Water exposure is unavoidable around germination benches.

The Scarecrow Seedling Heat Mat Wholesale range uses a PVC exterior and is specified at IPX7 waterproof performance.

However, waterproof mat construction does not replace correct electrical installation. Commercial users should still manage:

•   Cable routing away from standing water;

•   Protected plug and connection locations;

•   Suitable circuit protection;

•   Regional electrical requirements;

•   Routine inspection for mechanical damage.

5. Specify Electrical and Market Requirements Before Production

For international Seedling Heat Mat Wholesale, electrical configuration is part of the product specification—not an afterthought.

Before sample approval, buyers should confirm:

•   110V or 230V system requirements;

•   US, EU, UK, China, or other plug standards;

•   Cable configuration and required length;

•   Thermostat configuration;

•   Instruction-manual language;

•   Warnings and market-specific labels;

•   Retail or bulk packaging.

Scarecrow also supports private labeling, logo printing, customized colors, retail boxes, mail-order packaging, manuals, barcodes, stickers, and carton marks.

A Practical Seedling Heat Mat Wholesale RFQ Checklist

An RFQ for a heat mat contains a number of essential elements to provide a complete specification. These include the type of crop and application, target root zone temperature, tray dimensions, number of trays per bench, mat dimensions, voltage and wattage, type of plug, thermostat, waterproofing, destination country, shipping documentation, branding, and estimated quantity.

Once the essential specification elements of a heat mat are defined, we can assess the quotation as part of a greenhouse seedling propagation system.

Final Consideration

Thermal performance, coverage, and control of the heat mat system must be in balance with other system requirements such as electrical compatibility and moisture protection. The system must also be packaged for transport.

Scarecrow Garden Supply currently offers heat mats that incorporate the features listed above. These may be of interest for the greenhouse, nursery and retail hydroponic trades.

For further information on potential customer projects, please contact us with your system requirements and the expected quantity.

FAQs

Q1. What sizes are available for Scarecrow Seedling Heat Mat Wholesale orders?

Scarecrow Garden Supplier currently offers seedling heat mats in 254 × 527 mm, 508 × 527 mm, and 1219 × 527 mm sizes. Buyers should select the mat size according to seed tray dimensions, bench layout, and required heated coverage.

Q2. What wattage options are available?

Scarecrow Seedling Heat Mat Wholesale products are available in 18W, 45W, and 105W configurations. The appropriate wattage depends on mat dimensions, ambient greenhouse temperature, tray construction, insulation, and the required root-zone temperature.

Q3. What voltage does the seedling heat mat support?

The heat mats are available for 110–230V electrical systems, making them suitable for different international markets. Voltage requirements should be confirmed before sample approval and bulk production.

Q4. Are Scarecrow seedling heat mats waterproof?

Yes. Scarecrow Garden Supplier specifies an IPX7 waterproof rating for its seedling heat mats. The PVC construction is designed for humid propagation environments where irrigation and moisture are common.

Q5. Can the Seedling Heat Mat Wholesale order include a thermostat?

Yes. Scarecrow offers both standard non-thermostat models and adjustable thermostat options. Thermostatic control is particularly useful for commercial germination, winter propagation, hydroponic seed starting, and temperature-sensitive crops.
