Wattage for Commercial Propagation

For garden wholesalers, distributors, nurseries, and garden centers, selecting a Greenhouse Heat Mat involves more than choosing the highest wattage. Mat dimensions, power density, tray footprint, ambient temperature, and control method all affect heating consistency, energy use, packaging, and the end-user experience.

Based on Scarecrow Garden Supplier's propagation-equipment experience, this guide explains how to match Greenhouse Heat Mat sizes and wattages with common commercial scenarios.

Why Greenhouse Heat Mat Size and Wattage Matter

A Greenhouse Heat Mat supplies bottom heat directly to the growing medium; it does not replace greenhouse air heating or grow lighting. Bottom heat can help maintain suitable germination temperatures, but requirements vary by plant species. Media that retain heat may have slower rates of water retention. Consequently, monitoring moisture levels will be imperative.

These factors should be evaluated in combination:

•Tray Coverage: the mat should cover the active growing area with appropriate mat coverage, i.e., no excess gaps and no excessive overhang.

•Power density: Wattage should be assessed relative to the mat's total surface area.

•Ambient conditions: A cool greenhouse bench or unheated room loses heat faster than a climate-controlled indoor rack.

•Temperature control: A thermostat and growing-media probe provide more useful control than mat surface temperature alone.

Scarecrow Garden Supplier Greenhouse Heat Mat Options

A "1020" propagation tray is a nominal industry format rather than one exact universal dimension. Commercial trays are commonly around 10–11 inches wide and 20–21.5 inches long. Buyers should therefore confirm the tray's actual outer dimensions before ordering a Greenhouse Heat Mat.

Greenhouse Heat Mat Size	Rated Power	Approx. Power Density	Practical Coverage	Typical Commercial Use

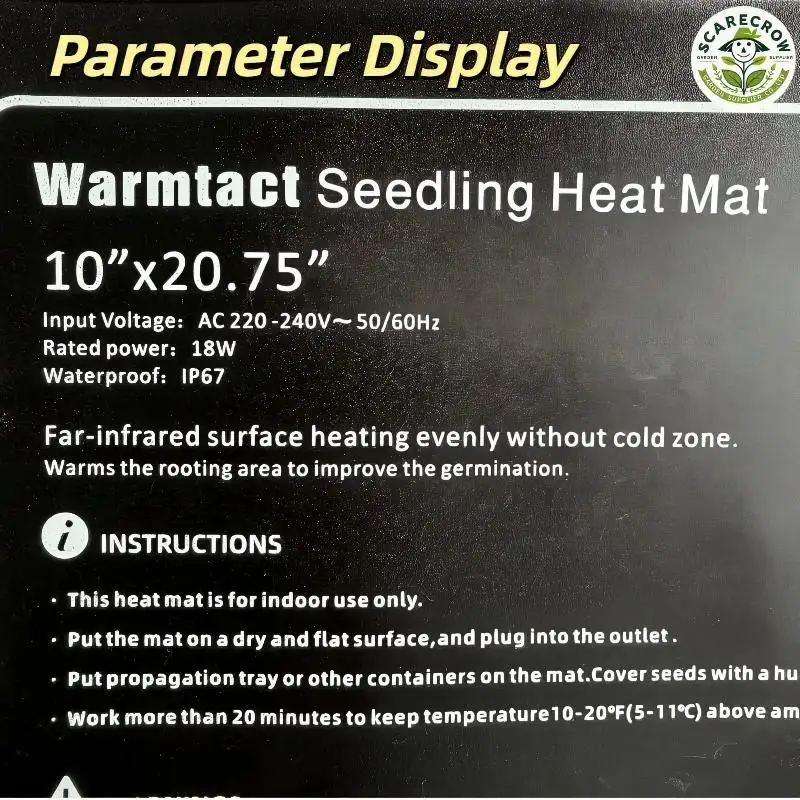

254 × 527 mm	18 W	134 W/m²	One nominal 1020 tray footprint; verify edge coverage	Retail kits, single-tray stations and compact displays
508 × 527 mm	45 W	168 W/m²	Two nominal 1020 tray footprints side by side	Nursery benches, propagation shelves and starter racks
1219 × 527 mm	105 W	163 W/m²	Extended 48-inch shelf; several trays depending on spacing	Multi-tier racks and larger propagation benches

The 45 W and 105 W models have similar power density, helping provide comparable heating intensity across different surface areas. The 18 W version has a lower power density and is better suited to compact growing setups.

Matching a Greenhouse Heat Mat to the Sales Channel

Garden Centers and Retail Kits

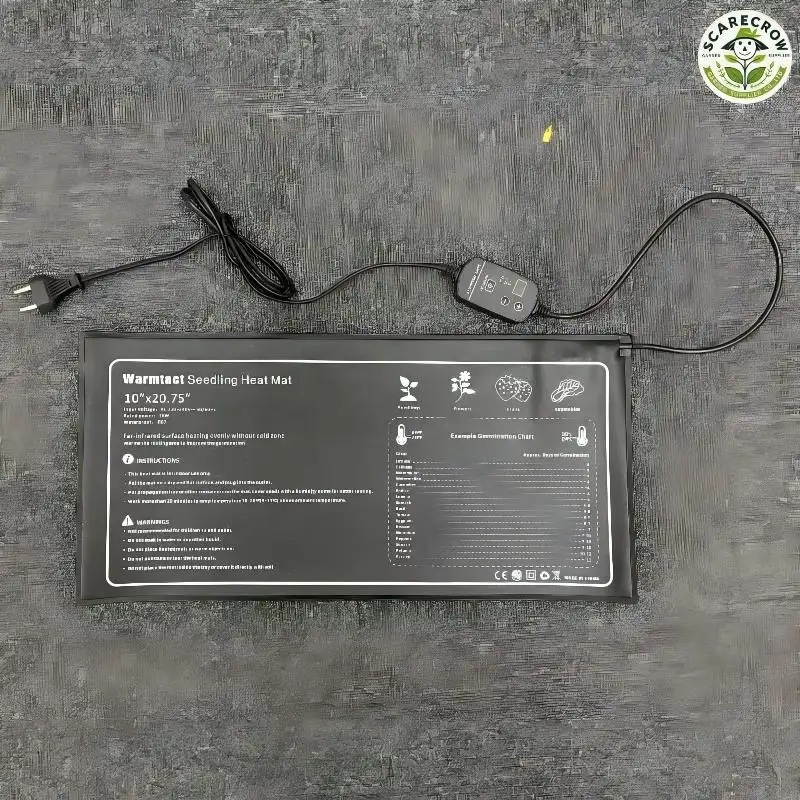

The 254 × 527 mm Greenhouse Heat Mat suits single-tray seed-starting kits and seasonal retail displays.

•Simple product bundling: Pair the mat with a nominal 1020 tray, humidity dome, growing medium and seed packs.

•Lower connected load: The 18 W rating supports compact indoor seed-starting systems without unnecessary power capacity.

•Practical packaging: The smaller format works well with shelf-ready cartons and mail-order packs.

Sample fitting should be completed before packaging artwork, tray inserts and carton dimensions are finalized.

Nurseries and Propagation Benches

The 508 × 527 mm, 45 W Greenhouse Heat Mat provides broader coverage for approximately two nominal 1020 tray footprints.

•Repeatable bench layouts: Multiple mats can be arranged across propagation benches or shelf bays.

•Balanced heating area: The format supports routine seed starting and cutting propagation under suitable ambient conditions.

•Thermostat compatibility: Temperature control is valuable where night temperatures fluctuate or crops require different media temperatures.

Commercial selection should be based on measured growing-medium temperature rather than room temperature alone.

Indoor Growing and Hydroponic Racks

The 1219 × 527 mm, 105 W Greenhouse Heat Mat is intended for extended shelves and multi-tray layouts.

•Fewer electrical connections: One long mat can reduce cord and power-point requirements.

•Cleaner rack organization: The format supports orderly installation on multi-tier growing shelves.

•Related heating performance: Its calculated power density is close to that of the 45 W model.

Final tray capacity depends on tray width, shelf clearance, spacing between trays and thermostat-controller placement.

Water Resistance, Voltage and Customization

According to the supplied product specifications, Scarecrow Garden Supplier's Greenhouse Heat Mat uses flexible PVC construction and an IPX7-rated mat body.

IPX7 refers to protection against temporary immersion under defined IEC 60529 test conditions. It should not be interpreted as permission to immerse plugs, connectors or thermostat controllers. Product installation and electrical-safety instructions must still be followed.

The current commercial options are:

•Electrical configurations: 110-230 V setups with different regional plugs and with custom length cables.

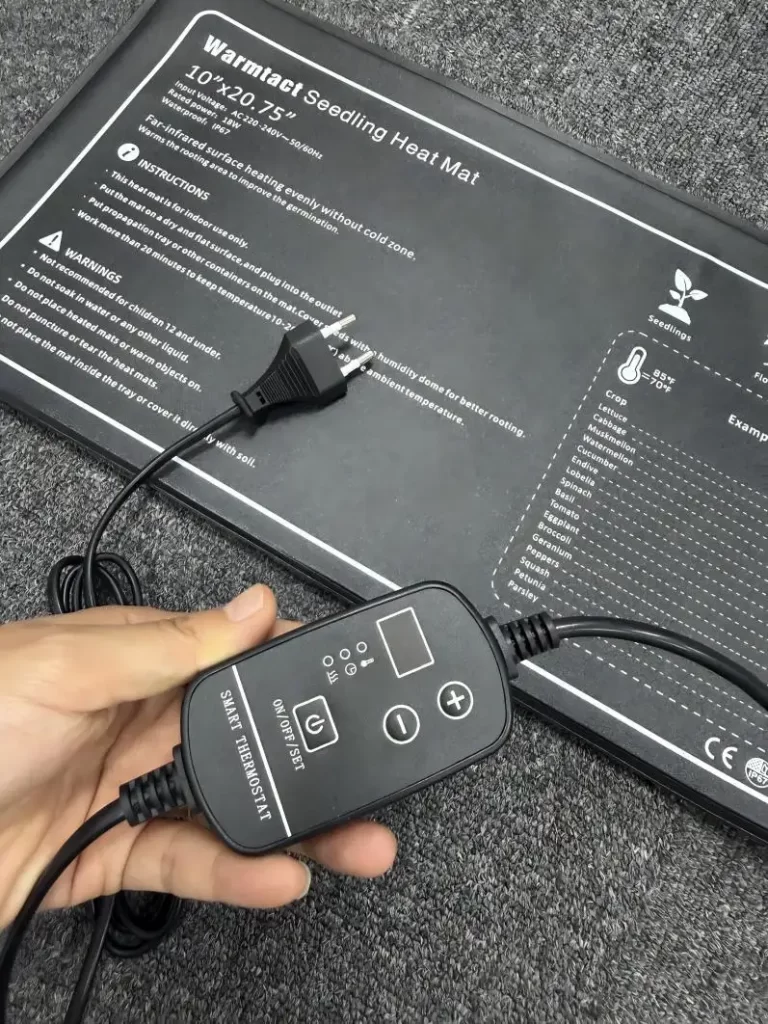

•Thermostat configurations: Variety of standard or adjustable mats for different cultivation temperatures.

•Private-label solutions: Custom boxes, assembly instructions, safety labels, barcodes, and promotional art.

•Extensive packaging options: Retail, e-commerce, or bulk Carton packaging for greenhouse use.

•Sample testing: Buyers are able to test compatibility for tray fit, heat distribution, plug type, and packaging prior to placing a bulk order.

Greenhouse Heat Mat Selection Checklist

Wholesale buyers should confirm:

•Exact tray dimensions and number of trays per shelf

•Crop temperature requirements and ambient growing conditions

•Voltage, plug type, cord length and destination-market compliance

•Thermostat type and sensor placement

•Retail, mail-order or bulk packaging requirements

•Instructions, warning labels, warranty terms and after-sales procedures

Selecting the Right Configuration

Choosing the right Greenhouse Heat Mat means matching physical coverage and controlled heat output to the actual propagation system.

Scarecrow Garden Supplier's three size-and-power combinations can support single-tray retail kits, two-tray nursery layouts and extended commercial growing shelves. Confirming tray dimensions, operating conditions, electrical requirements and packaging before production helps distributors develop a more practical and consistent product offer.

FAQs

Q1: Can we order samples before bulk purchasing?

A1: Yes. Sample orders are available for quality checking, size confirmation, plug verification, and packaging review before bulk order placement.

Q2: Can the plug be customized for our market?

A2: Yes. US plug, EU plug, China plug, and other plug types can be discussed according to your target market requirements.

Q3: Is temperature control available?

A3: Yes. The standard model can be supplied without a thermostat, and adjustable temperature control options can be provided if your market requires it.

Q4: Can this product be supplied with our own brand packaging?

A4: Yes. We can support logo, label, manual, retail box, and carton customization based on your order requirements.

Q5: What payment methods do you support?

A5: We support multiple international payment methods including T/T and L/C. For sample orders, PayPal or Western Union may also be available.
